Seek Thermal Expands Thermal Imaging Line with RevealPRO

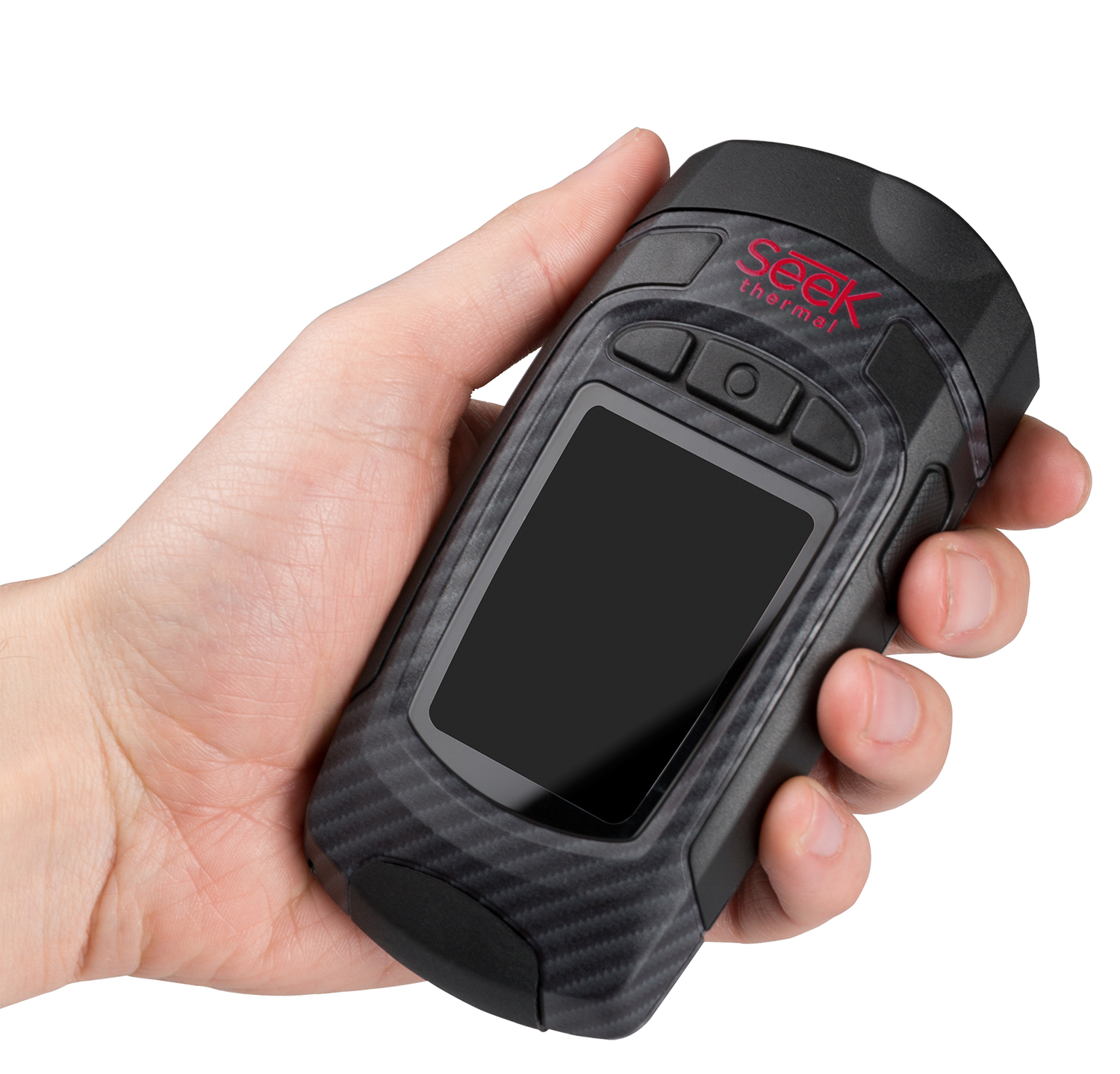

Thermal’s most advanced handheld thermal imaging camera yet, the RevealPRO combines a high-performance 320 x 240 thermal sensor, intuitive software, and a powerful 300-lumen LED light into one highly durable, handheld, and easy to use device. Offering adjustable thermal span and level, full frame thermography imaging 76,800 pixels, the RevealPRO breaks new barriers by offering high-resolution fastframe thermal imaging and software capabilities at an affordable price of $699.00 USD. Seek’s Pro Series cameras, which includes the new RevealPRO and previously announced CompactPRO, deliver high performance thermal resolution at an ergonomic and portable size to assist commercial trades professionals in getting a full look at the problem in the fastest time possible. Seek’s PRO series is also full featured and affordable, making it easier to be more productive in one’s daily job than ever before. “We’ve had our eye on developing more advanced sensor systems to enhance perception and awareness for a wide variety of segments including building & predictive maintenance, situational awareness, and on-the-ground surveillance applications.  The RevealPRO was designed to be portable enough to carry with you at all times — and powerful enough of a thermal imager to diagnose and assess the problem sources quickly and reliably to make better decisions,” said Tracy Benson, CMO/VP of Global Marketing for Seek Thermal.  “The new flagship RevealPRO was specifically designed for the experts by removing the biggest pain point: price.”Key features for the RevealPRO include:

• 320x240 thermal sensor array for maximum image clarity, delivering 76,800 pixels of vivid thermal resolution.
• Ruggedized 2.4” color display featuring Corning® Gorilla® Glass protection.
• Portable in size with easily accessible buttons to access interface with gloved hands.
• FastFrame rate to enhance near real-time thermal imaging.
• Fixed focus system – and minimum focus distance of 15cm (6 inches).
• Wide, 32F field of view with 4x digital zoom functionality to easily scan a large area and identify potential hazards in seconds.
• Temperature measurement accuracy of +/-5C or 5% (at 25C nominal, whichever is greater).
• Thermal temperature measurement range between -40F to 330C.
• More than 4 hours continuous battery running time in normal mode (rechargeable by USB).
• 300-lumen LED flashlight at the touch of a button.
• Variable temperature reporting in Fahrenheit, Celsius, and Kelvin.
• In-imager memory storage of 4 gigabytes, transferrable images by USB.

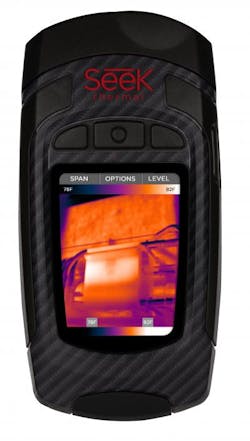

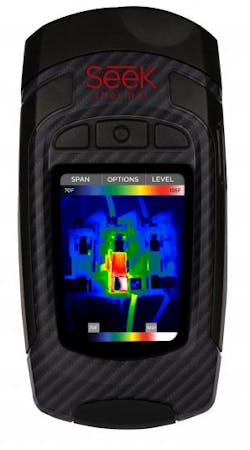

New key software features include:Adjustable Thermal Level and Span – Manually set and lock a temperature range to

display the maximum thermal information of any object or scene with a set point and range.On-screen Emissivity Control – Calibrate for emissivity through pre-defined settings made easy, compensate for various surface materials, ensuring accurate readings and reporting, regardless of surface type.Nine Standard and High Contrast Color Palettes – Enhanced palette options are available to Seek device owners. From standard grayscale to prism high contrast, RevealPRO provides the visual capabilities necessary to help users easily examine and understand thermal imagery across applications during and post inspection.Full-Frame Mapping of Temperature Distribution – Displays all temperature data for maximum clarity and resolution.Multiple User Modes – Normal, Spot temperature and Level & Span included.PRICING AND AVAILABILITY The Seek RevealPRO sells for an MSRP of $699.00 USD and will be available through authorized distribution channels in North American, EMEA markets and APAC markets. For more information, visit: www.thermal.com.
